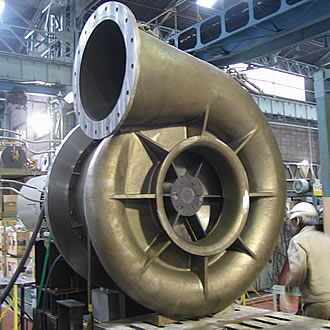

HIGH TEMPERATURE CERAMICS FAN

The rotor of this CERAMICS FAN is all made of SiC ceramics.
So this CERAMICS FAN can blow ultra high temperature gas up to 1200°C.
This is the first technology in the world!

HIGH TEMPERATURE CERAMICS FAN

Applications

  1. FLOATING SYSTEM
    for continuous annealing line.
    This system can convey steel plate without roll mark.
  2. CIRCULATION SYSTEM
    for ultra high temperature gas.
    This system can be applied to various heat treatment furnaces.
  3. STIRRING FAN
    CERAMICS FAN can stir ultra high temperature gas strongly. It can reduce heating time 15-25% and energy consumption approx.10-20%.

Representative model


IFP7011 Impeller O.D=φ700mm

IFP4511 Impeller O.D=φ450mm

IFP2602 Impeller O.D=φ265mm

Delivery results

Type q'ty Country Company Use
IFP7011 14 Japan secret Floating at Continuous annealing line
IFP7011 1 Japan Nippon Steel Company Hot gas circulation at Heat treat furnace
IFP7011 7 China secret Floating at Continuous annealing line
IFP2602 4 Japan Mitsubishi Heavy Industries Anode gas circulation of SOFC
IFP7011 2 Japan Kobe Steel Company Stirring Fan at Heat treat furbane
IFP4511 3 Germany secret Hot gas circulation at Heat treat furnace
IFP7011 2 Japan D company Stirring Fan at Heat treat furbane for copper
IFP7011 2 Japan J company Stirring Fan at Heat treat furbane for copper
TOTAL 35
